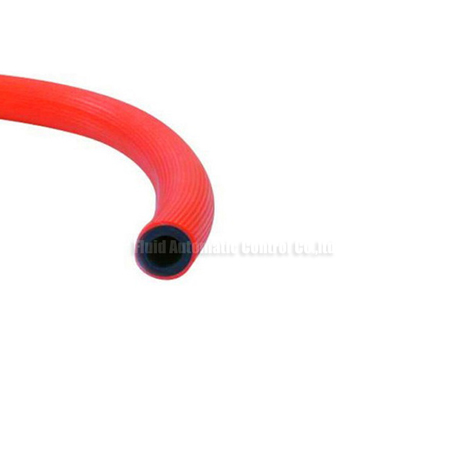

*PVCA fiber reinforced tube for high pressure air,water,oil *Inner Diamter inch size 3/16”~2” *Tube material PVC *outside cover material PVC *Reinforcement material High tensile synthetic fibre spiraled *Flexible and soft,easy for pipe work

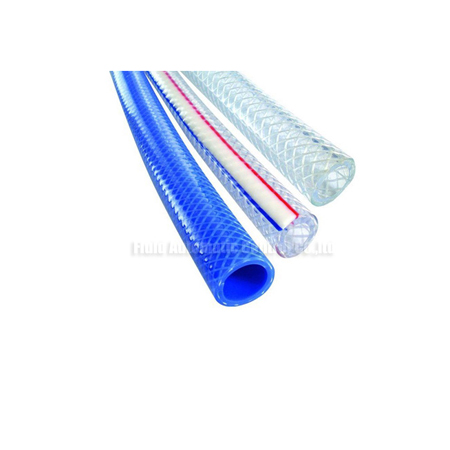

*PVC Fiber reinforced hose *Inner Diamter inch size 1/4”~2” *Tube material PVC *outside cover material PVC *Reinforcement material polypropylene fiber *Flexible and soft,easy for pipe work *Conform to ROHS environment protection requirement *Pressure-resistance,weather-resistance * abrasion-resistance,corrosion-resistance

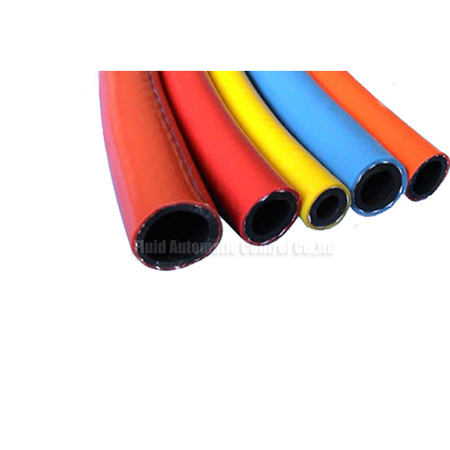

*PVC Material Garden hose *Inner Diamter inch size 1/2”,5/8”,3/4”,1” *Material:PVC *Flexible and soft,easy for pipe work *Conform to ROHS environment protection requirement *Various colour for option *Pressure-resistance,weather-resistance

*PVC fiber reinforced tube for liquid gas and nature gas *Inner Diamter inch size 1/4”,5/16”,3/8”,1/2” *Tube material PVC *outside cover material PVC *Reinforcement material High tensile synthetic fibre spiraled *Flexible and soft,easy for pipe work

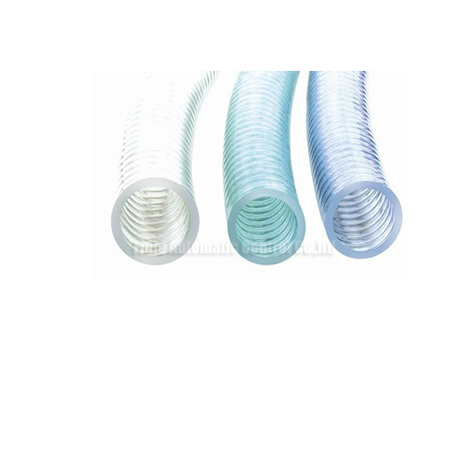

*PVC Steel wire reinforced hose *Inner Diamter inch size 1/4”~6” *Tube material PVC *outside cover material PVC *Reinforcement material steel wire spiraled *Pressure-resistance,weather-resistance * abrasion-resistance,corrosion-resistance

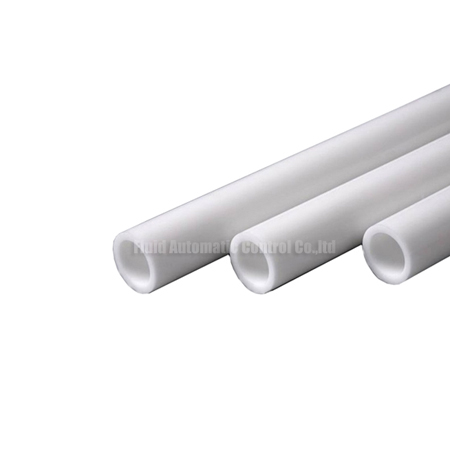

*PE Series polyethlene tube *Working temperature:-20~60℃ *Working pressure 8.0Bar *Outer Dia. Metric size 4mm,6mm,8mm,10mm,12mm *Outer Dia. Inch Size 1/8”,1/4”,3/8”,1/2” *Chemical-resistance,anti-corrosion *Oil-resistance *Outstanding performance in insulation

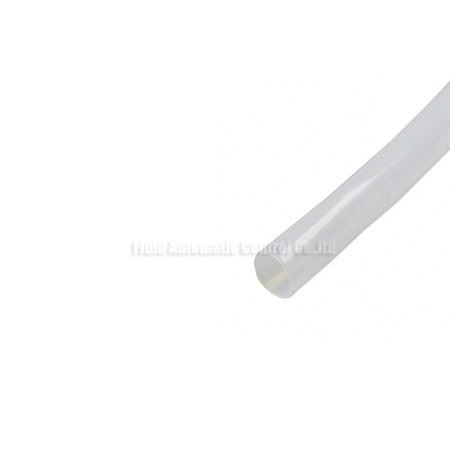

*PTFE(TEFLON) Hose *Working temperature:-73~260℃ *Outstanding weather-resistance *Outer Dia. Metric size 4mm,6mm,8mm,10mm,12mm *Low friction coefficient *With self-lubrication,no viscosity *Excellent corrosion-resistance *High insulation class *Low friction coefficient

*HRPM series auto hose reel *Housing material metal *Tube material PU braided *Working pressure 15bar *Tube size 8mm,10mm,12mm *Tube length 5m,8m,12m *High capacity suspension *Space saving,enhance work efficency *Hose length can be according to request *Flexible mounting type for option

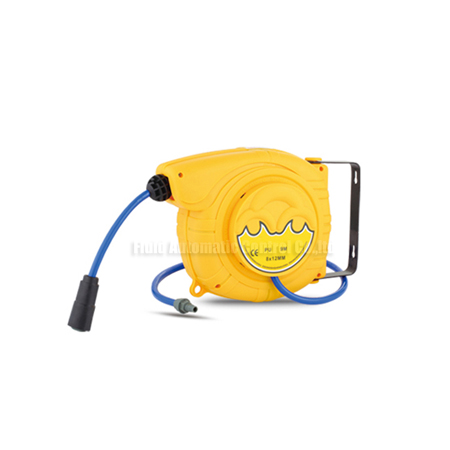

*HRPP series auto hose reel *Housing material PP Plastic *Tube material PU braided *Working pressure 15bar *Inlet outlet Tube size 10mm,12mm *Tube length 9m,12m *Space saving,enhance work efficency *Hose length can be according to request *Flexible mounting type for option

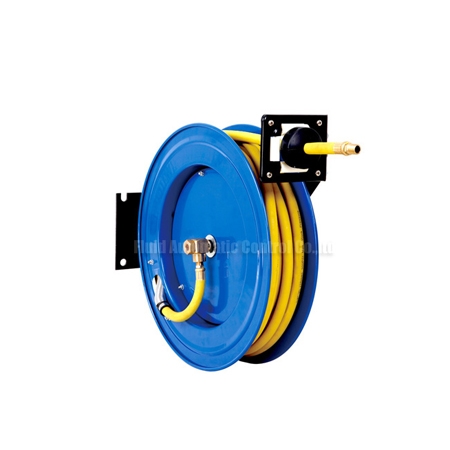

*HRMR series auto hose reel *Housing material Metal *Tube material reinforced rubber hose *Working pressure 20bar *Inlet outlet Tube size 1/8”,1/4”,3/8”,1/2” *Tube length 10m,15m *Space saving,enhance work efficency *Flexible mounting type for option

*Air driven type,easily to operate by foot *single acting for single acting cylinders *Operating pressure up to 10000PSI(70Mpa) *Rugged one-piece construction reduce air consumption *Metal reservoir with 0.69L Oil capacity *With automatic relief valve for overload protection

*Air driven type,easily to operate by hand of foot *single acting for single acting cylinders *Operating pressure up to 10000PSI(70Mpa) *Reinforced engineering plastic reservoir 1.7L Oil capacity *With automatic relief valve for overload protection *With air nipple and hydraulic adapter
