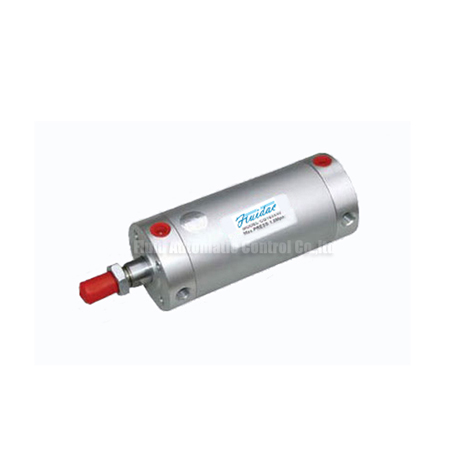

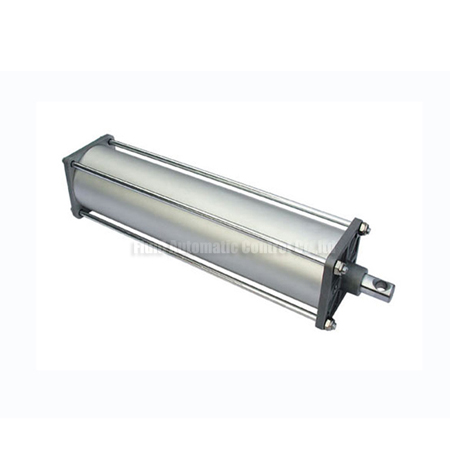

*SMC equivalent aluminum alloy mini pneumatic air cylinder
*Compact light weight,simple design cost effective
*Rubber buffer standard,air buffer adjustable for option
*Stainless steel barrel can be available
*Bore size 20mm,25mm,32mm,40mm,50mm,63mm,80mm,100mm
*Bore size 10mm,16mm,20mm,25mm
*Integrating a cross roller bearing with a guide and two small air cylinders for compact force generation to make sure precision motion
*Stroke adjustments are available for extend,retract
*Shock absorbers,end lock,axial piping,and buffer for option
*Double acting and spring return
*Lifecycle 500000 times

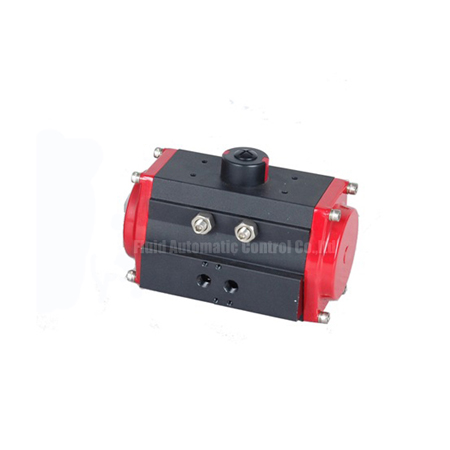

*Rotation 0º to 90º±5º .
*Valve mounting and drive dimensions to the ISO 5211/DIN 3337.
*Mounting for solenoid valves and position signalers to the NAMUR (VDI/VDE 3845).
*Pre-loaded spring cartridges for safe efficient use of actuator

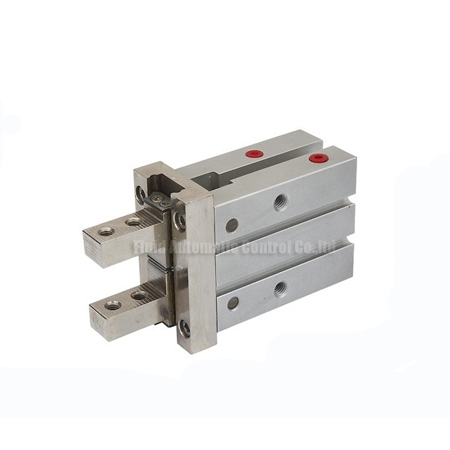

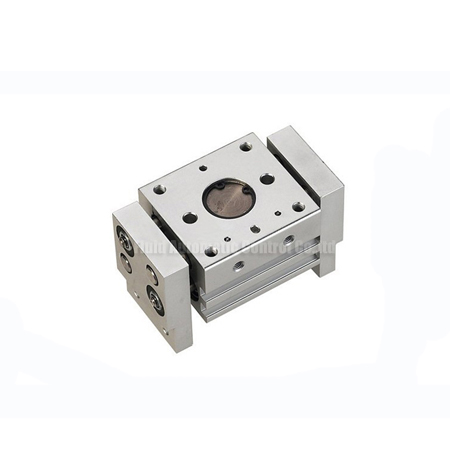

*A large amount of gripping force is provided through the use of a double piston mechanism
*Double end type oil-impregnated resin bearings with a metal backing are used for all shafts.
*Built-in dust-protection mechanism.
*High degree of freedom for mounting ,Auto Switch mountable.
*Bore size6mm,10mm, 16mm,20mm,25mm,32mm,40mm
*Various finger type selectable
*Built-in magnetic,suitable slot on 2 sides is designed for magnetic sensor fixing

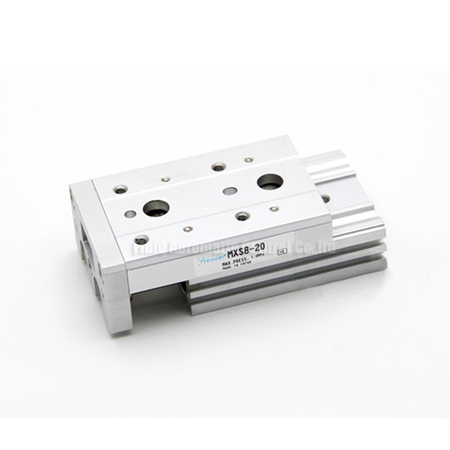

*With high precision integral linear guide and high rigidity gripper

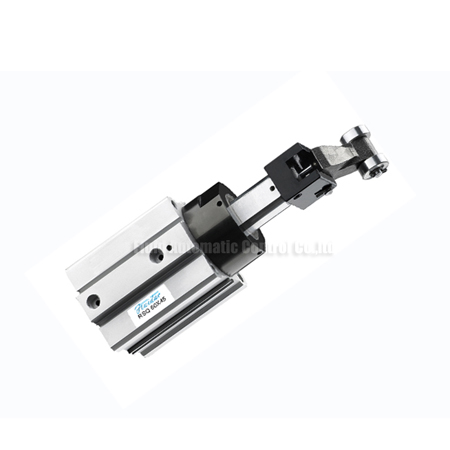

*RSQ Stop pneumatic air cylinder SMC equvalent
*Fixed mounting height type
*Rod end configuration various type for option
*Double action spring load and single action spring extend for option
*With self-lubricating bearing,lubrication free
*Bore size 10mm,20mm,32mm,40mm,50mm

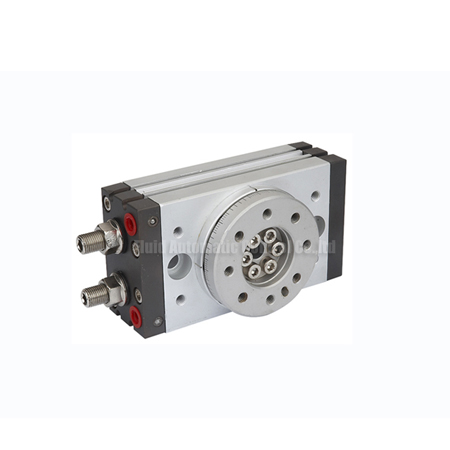

*Integration of a table and rotary actuator
*Equipped with angle adjustment mechanism
*With large rolling element bearing.
*Pivoting angle adjustment range: 0~190
*With internal shock absorber,External absorber type for option
*Variety of installation options for space-saving.

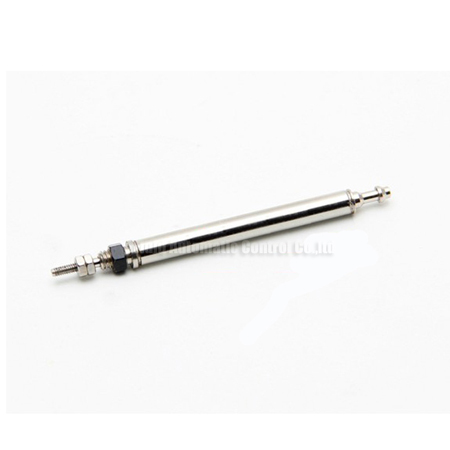

*With bore size dia.4mm,micro shape,high sensitivity in motion
*Single action,spring return
*Stainless steel barrel for anti-corresion and sanitary application
*Adapted PU or soft Nylon tube directly,convenient and fast connecting.

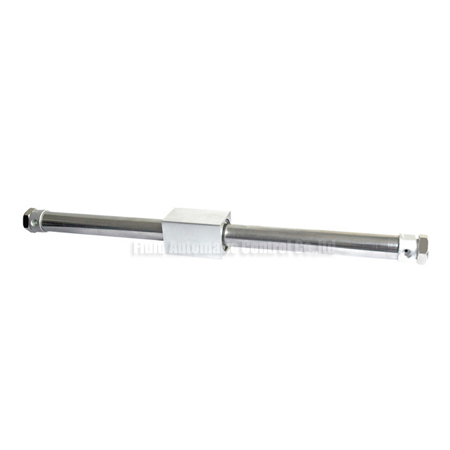

*Sliding type,sliding ball bearing guided type and direct mounting type for option
*Internal piston is connected to an external carriage by means of a magnetic.
*With Rubber buffer,motion smooth,low noise.Shock absorber for CY1L selectable
*Available with high or low magnetic holding force

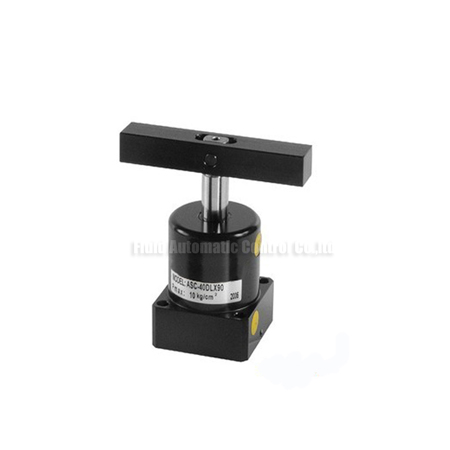

*Designed for mass production on a special purpose machine and jig on machining center. upgrade production efficiency
*When cylinder actuate, piston moves downward, the clamping arm swing to a rated angle, lowers until the workpiece is clamped securely.
*Rotating Angle 0°,45°,60°,90°for option
*PTA series pneumatic air cylinder for tyre changer of automotive industrial
*Bore size 50mm,60mm,70mm,75mm,80mm,90mm,95mm,185mm,186mm
*Special Seals material 5 times wear-resistance than the normal NBR seals
*Special rubber piston also with good wear-resistance preformance

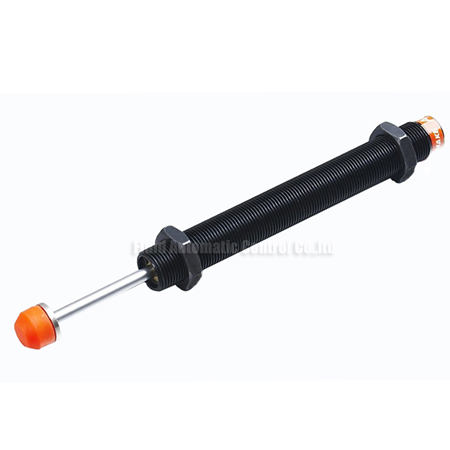

*Eliminate the vibration and impact of Non-required mechanical motion effectively
*Keep mechanical equipment safety in working,Longer service life
*Body material 45# steel (ASTM-1045)
*With high impact speed absorbtion,max Engergy consumption
*Body thread from M8~M64 for widely Option
