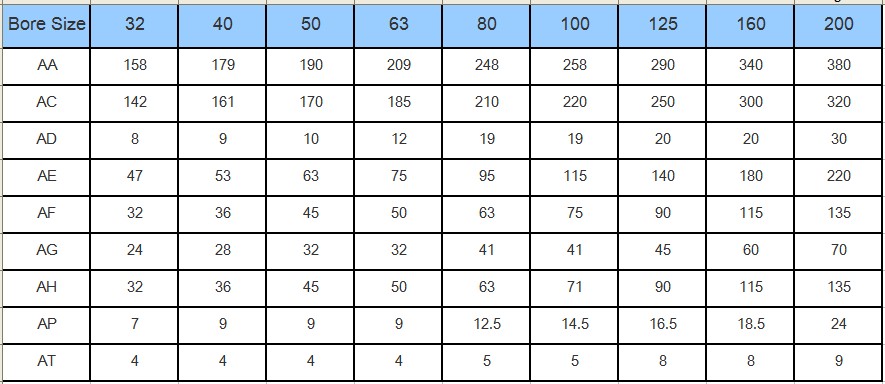

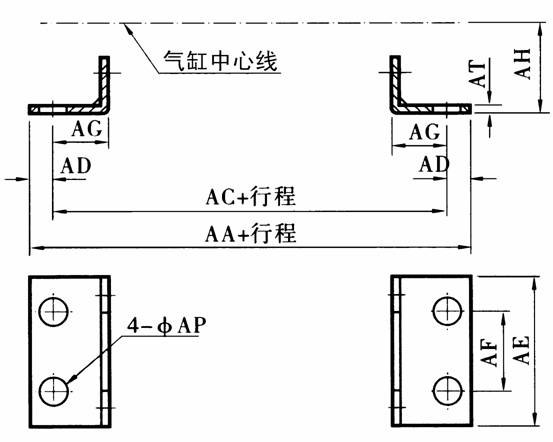

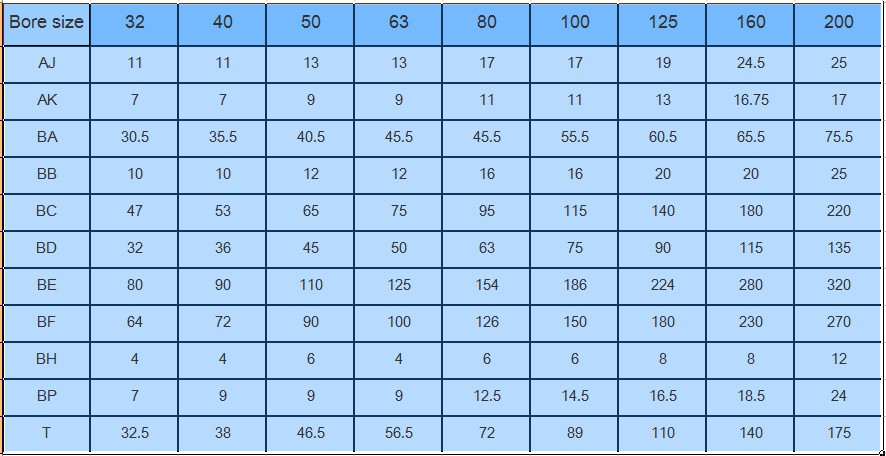

LB foot mounting of ISO Air cylinder accessories
Model no:ISO-LB-32~200(Bore size 32mm~200mm)
Material:steel
Surface treatment:Electroplating

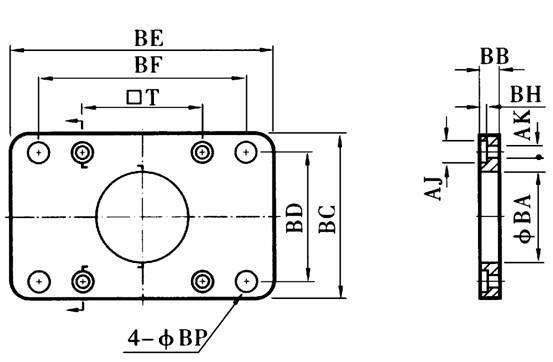

FA/FB Flange/Rear Frange of ISO Air Cylinder
Model no:ISO-FA/FB-32~200(Bore size 32mm~200mm)
Material:Aluminum Alloy
Surface Treatment:Painting

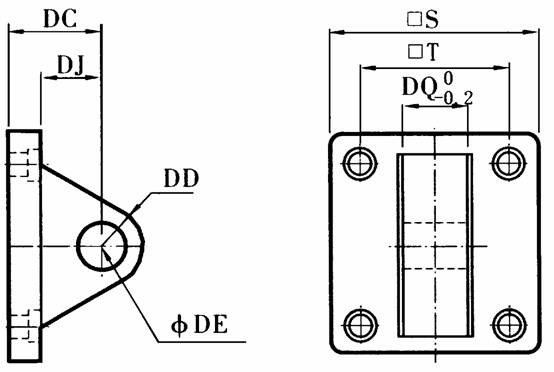

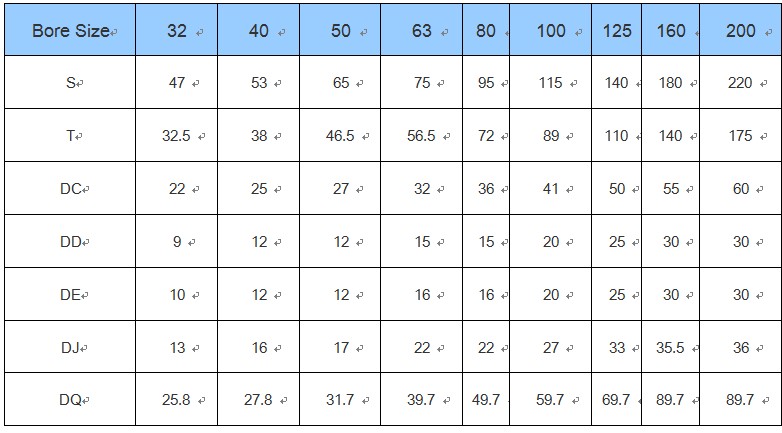

CA Single Earring of ISO Air Cylinder
Model no:ISO-CA-32~200(Bore size 32mm~200mm)
Material:Aluminum Alloy
Surface Treatment:Painting

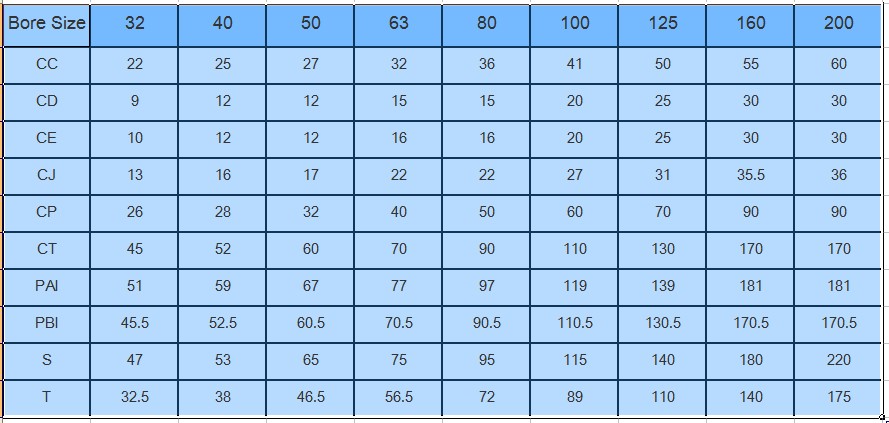

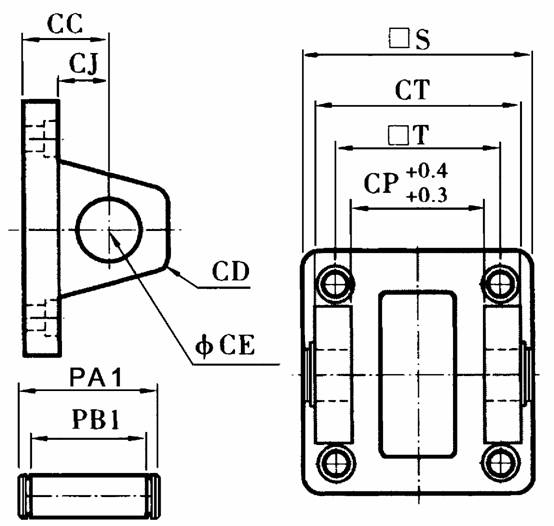

CB Double Earring of ISO Air Cylinder
Model no:ISO-CB-32~200(Bore size 32mm~200mm)
Material:Aluminum Alloy
Surface Treatment:Painting

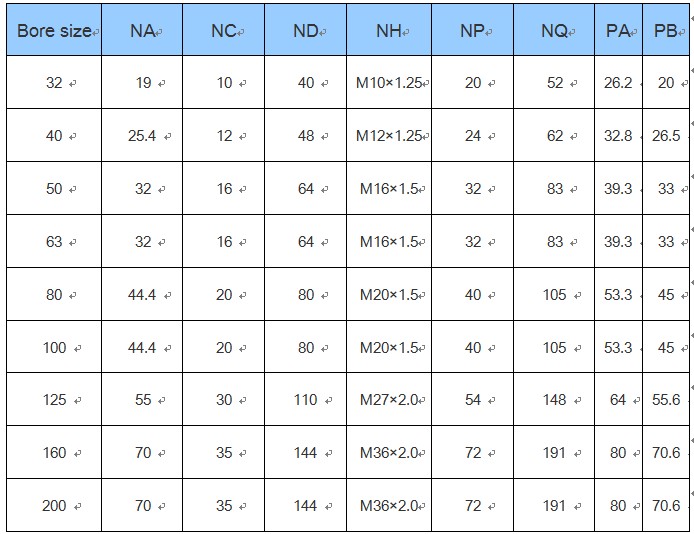

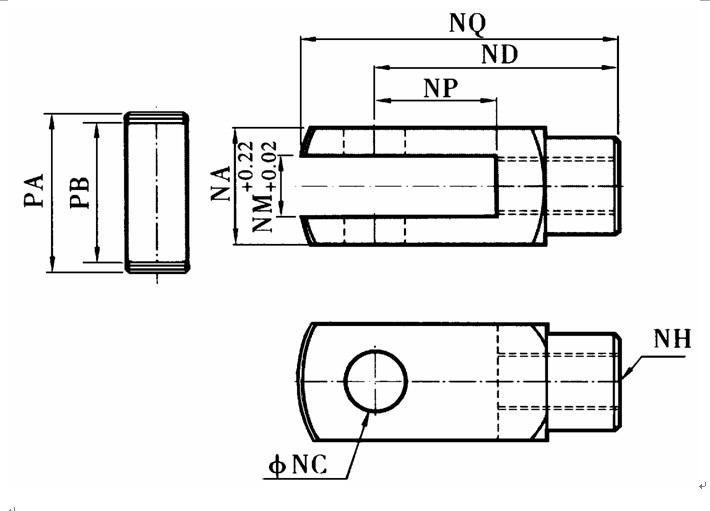

Y+Pin Y joint with Pin or Y clevis with Pin of ISO Air Cylinder
Model no:ISO-Y+PIN-32~200(Bore size 32mm~200mm)
Material:Carbon steel
Surface Treatment:Nickle plated or Zinc Galvanized

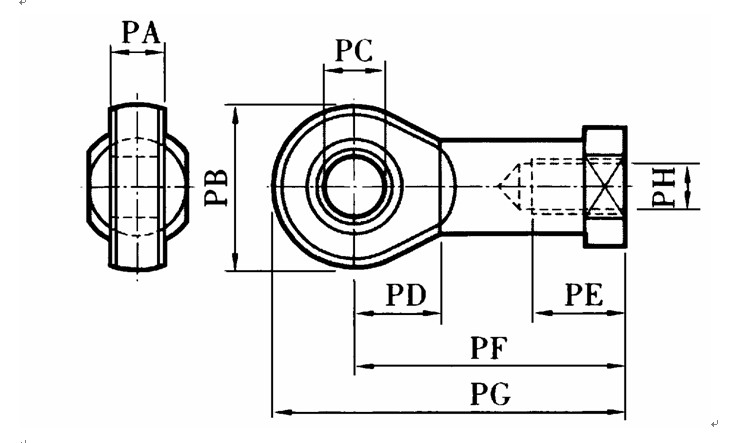

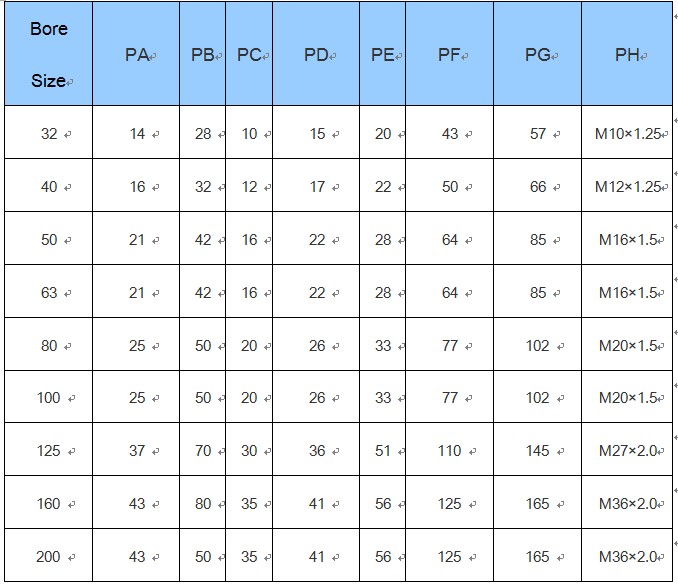

FEB Fish Eye Bearing joint of ISO Air Cylinder
Model no:ISO-FEB-32~200(Bore size 32mm~200mm)
Material:Bearing Steel and Brass
Surface Treatment:Nickle plated and Zinc Galvanized
Thread Direction:Left or Right direction
Lubrication:Self-lubrication or with oil feed nozzle
