ISO6431 Mickey Mouse Barrel SI Pneumatic Air Cylinder
ORDERING CODE
SI
50
100
PPV
A
LB
ISO 6431/ISO 15552 Standard
Bore Size
Stroke
Air buffer both ends
With Magnet standard
Mounting Accessories
SI:Standard Cylinder
32:32mm
Blank:Basic type
40:40mm
LB:Foot mounting front and rear
50:50mm
FA:Front flange
SID:Double piston rod
63:63mm
FB:Rear flange
80:80mm
CA:Single earring
100:100mm
CB:Double earring

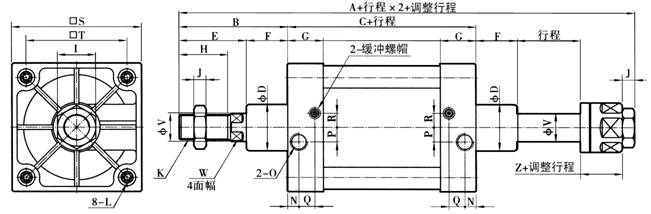

SIJ:Double piston rod stroke adjustable
125:125mm
TC:Middle turnion axial
160:160mm
YB:Rotation Clevis
200:200mm
SPECIFICATION
Bore size(mm)
32
40
63
80
125
160
200
working Medium
Filtered compressed air
Motion Pattern
Double action/Single action
Pressure Endurance
1.5MPa
Operating pressure range
0.1~1.0MPa
Ambient Temperature
-5~70ºC
Buffer cushioning
Air adjustable buffer both ends
Operating Speed
50~800mm/s
Buffer stroke
24mm
32mm
Port size
G/18
G1/4
G3/8
G1/2
G3/4
