DNC ISO15552/ISO6431 VDMA24562 Square Pneumatic Air Cylinder
|
|
|
ORDERING CODE |
|
DNC |
63 |
50 |
PPV |
A |
S2 |
|
DNC: |
Bore Size |
Stroke |
Air Buffer |
With Magnet |
S2: |
|
32:32mm |
Double piston rod |
|
Square Barrel type |
40:40mm |
K2: |
|
50:50mm |
Piston rod Female Thread |
|
DNCM: |
63:63mm |
K5: |
|
80:80mm |
Non-Standard thread |
|
Mickey Mouse Barrel type |
100:100mm |
K8: |
|
125:125mm |
Piston rod extension |
|
SPECIFICATION |
|
Bore size(mm) |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
|
working Medium |
Filtered compressed air |
|
Motion Pattern |
Double action |
|
Pressure Endurance |
1.5MPa |
|
Operating pressure range |
0.1~1.0MPa |
|
Ambient Temperature |
5~60ºC |
|
Buffer cushioning |
Air buffer at both ends |
|
Operating Speed |
50-500mm/s |
|
Life Cycle |
Note less than 4000KM |
|
Lubricate |
Self-Lubricating |
|
Port size |
G1/8 |
G1/4 |
G3/8 |
G1/2 |

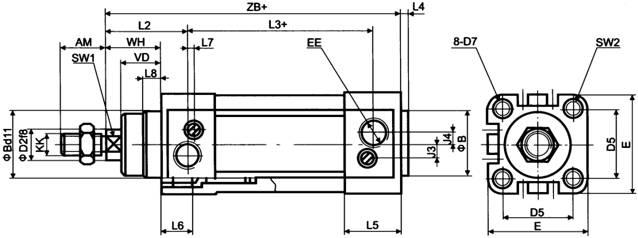

DNC…PPV-A
DNC…PPV-A
|
BORE SIZE |
AM |
B |
D2 |
D5 |
D7 |
E |
EE(G) |
J3 |
J4 |
KK |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
L8 |
SW1 |
SW2 |
VD |
WH |
ZB |
|
32 |
22 |
30 |
12 |
32.5 |
M6 |
45 |
1/8 |
6 |
5.2 |
M10×1.25 |
41.6 |
62.8 |
4 |
25.1 |
16 |
3.3 |
10 |
10 |
6 |
18 |
26 |
120 |
|
40 |
24 |
35 |
16 |
38 |
M6 |
54 |
1/4 |
8 |
6 |
M12×1.25 |
44 |
77 |
4 |
29.6 |
16 |
3.6 |
10.5 |
13 |
6 |
21.5 |
30 |
135 |
|
50 |
32 |
40 |
20 |
46.5 |
M8 |
64 |
1/4 |
10 |
8.5 |
M16×1.5 |
51 |
78 |
4 |
29.6 |
17 |
5.1 |
11.5 |
17 |
8 |
28 |
37 |
143 |
|
63 |
32 |
45 |
20 |
56.5 |
M8 |
75 |
3/8 |
12.4 |
10 |
M16×1.5 |
54 |
87 |
4 |
35.6 |
17 |
6.6 |
15 |
17 |
8 |
28.5 |
37 |
158 |
|
80 |
40 |
45 |
25 |
72 |
M10 |
93 |
3/8 |
12.5 |
8 |
M20×1.5 |
62.4 |
95.2 |
4 |
35.9 |
17 |
10.5 |
15.7 |
22 |
10 |
34.7 |
46 |
174 |
|
100 |
40 |
55 |
25 |
89 |
M10 |
110 |
1/2 |
11.8 |
10 |
M20×1.5 |
69.8 |
100.4 |
4 |
38.8 |
17 |
8 |
19.2 |
22 |
10 |
38.2 |
51 |
189 |
|
125 |
54 |
60 |
32 |
110 |
M12 |
134 |
1/2 |
13 |
8 |
M27×2 |
83 |
124 |
6 |
44.7 |
22 |
14 |
20.5 |
27 |
8 |
46 |
65 |
225 |

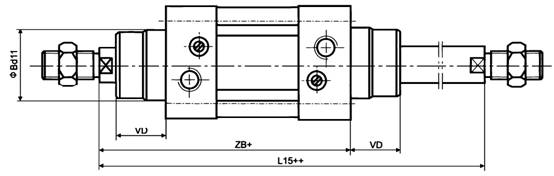

DNC…PPV-A-S2
|
BORE SIZE
|
B
|
L15
|
VD
|
ZB
|
|
32
|
30
|
46
|
18
|
120
|
|
40
|
35
|
165
|
21.5
|
135
|
|
50
|
40
|
180
|
28
|
143
|
|
63
|
45
|
195
|
28.5
|
158
|
|
80
|
45
|
220
|
34.7
|
174
|
|
100
|
55
|
240
|
38.2
|
189
|
|
125
|
60
|
290
|
46
|
225
|
|
|
|
