ORDERING CODE |
|
QTYH |
08 |
|
Type |
Port Size |
|

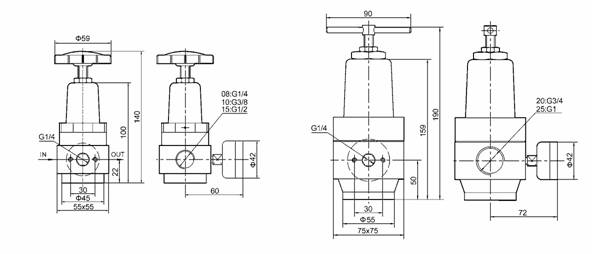

QTYH: QH Series High Pressure Air Regulator |
08:G1/4" |
|
10:G3/8" |
|

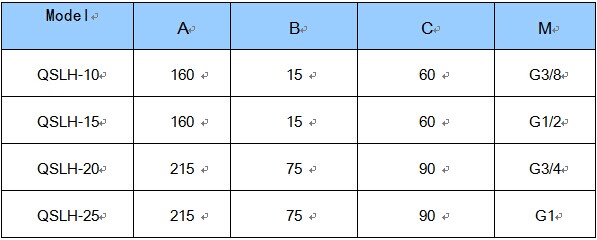

QSLH:QH Series High Pressure Air Filter |
15:G1/2" |
|
20:G3/4" |
|

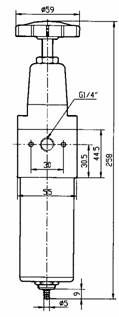

QFRH:QH Series High Pressure Filter Regulator |
25:G1" |
SPECIFICATION
1,Working Medium:Air source
2,Body material:Aluminum die-casting
3,Filter bowl material:Carbon steel
4,Filter element material:Brass
5,Seal Material:NBR
6,Working pressure:Regulator 0.05~3.5Mpa,Lubricator 0~4.0MPa
7,Working Temperature:-25~80℃
8,Filtration fineness:40µ,20µ can be available
9,Mounting type: Pipe-line mounting
10,Regulator type:Diaphragm type
11,Port size:G1/4”,G3/8”,G1/2”,G3/4”,G1”
